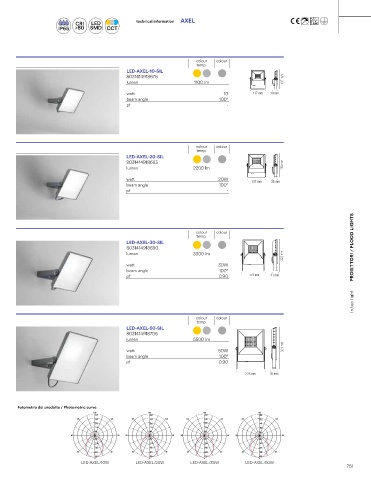

AXEL IP65 >80 SMD CCT technical information AXEL
CRI
LED

colour colour
temp.
LED-AXEL-10-SIL
8031414918676
lumen 1100 lm 137 mm

watt 10 117 mm 38 mm
beam angle 100°
pf -

colour colour colour colour
temp. temp.
LED-AXEL-10-BCO LED-AXEL-20-SIL
8031414918744 8031414918683
lumen 1100 lm 137 mm lumen 2200 lm 158 mm

watt 10W 117 mm 38 mm watt 20W 137 mm 36 mm
beam angle 100° beam angle 100°
pf - pf -

colour colour colour colour
temp. temp.
LED-AXEL-20-BCO LED-AXEL-30-SIL
8031414918751 8031414918690 PROIETTORI / FLOOD LIGHTS
lumen 2200 lm 158 mm lumen 3300 lm 220 mm

watt 20W 137 mm 36 mm watt 30W
beam angle 100° beam angle 100°
pf - pf 0.90 173 mm 41 mm

In.tec light

colour colour colour colour
temp. temp.
LED-AXEL-50-BCO LED-AXEL-50-SIL
8031414918768 8031414918706
lumen 5500 lm lumen 5500 lm
301 mm 301 mm
watt 50W watt 50W
beam angle 100° beam angle 100°
pf 0.90 pf 0.90
228 mm 38 mm 228 mm 38 mm

Fotometria del prodotto / Photometric curve Fotometria del prodotto / Photometric curve
180 180 180 180 180 180 180
441 443 427 441 426 413 402
135 352 -135 135 355 -135 135 341 -135 135 353 -135 135 341 -135 135 330 -135 135 322 -135
264 266 256 265 256 248 241
176 177 171 176 171 165 161
88 89 85 88 85 83 80
90 -90 90 -90 90 -90 90 -90 90 -90 90 -90 90 -90
88 89 85 88 85 83 80
176 177 171 176 171 165 161
264 266 256 265 256 248 241
45 352 -45 45 355 -45 45 341 -45 45 353 -45 45 341 -45 45 330 -45 45 322 -45
441 443 427 441 426 413 402
0 0 0 0 0 0 0
LED-AXEL/10W LED-AXEL/20W LED-AXEL/50W LED-AXEL/10W LED-AXEL/20W LED-AXEL/30W LED-AXEL/50W
