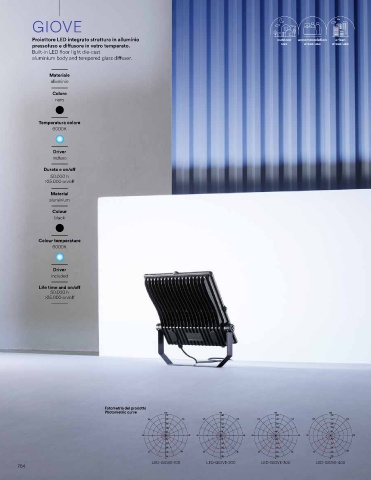

GIOVE PERFORMANCE WARRANTY IP66 degree CRI SMD technical information GIOVE
5
LED
LED
YEARS
>70
IK08
Proiettore LED integrato struttura in alluminio outdoor accommodation urban
pressofuso e diffusore in vetro temperato. use areas use areas use
Built-in LED floor light die-cast colour beam colour
aluminium body and tempered glass diffuser. temp. angle
LED-GIOVE-100
8031414882557
Materiale lumen 15670 lm 150° x 80°
alluminio 364 mm
watt 100W
Colore pf 0.90
nero
278 mm 52 mm

Temperatura colore
6000K
colour beam colour
temp. angle
Driver LED-GIOVE-200
incluso 8031414876365
lumen 32666 lm 150° x 80°
Durata e on/off LED-GIOVE-200-30 445 mm
8031414885138
50.000 h lumen 32666 lm 30°
>25.000 on/off
LED-GIOVE-200-60
8031414885145
Material lumen 32666 lm 60°
aluminium LED-GIOVE-200R-30 394 mm 56 mm
8031414885152
Colour lumen RED 30°
black LED-GIOVE-200R-60
8031414885169
lumen RED 60°
LED-GIOVE-200V-30
Colour temperature 8031414885176
6000K lumen GREEN 30° PROIETTORI / FLOOD LIGHTS
LED-GIOVE-200V-60
8031414885183
lumen GREEN 60°
Driver
included watt 200W
pf 0.90
Life time and on/off
50.000 h
>25.000 on/off colour beam colour
angle
temp.
LED-GIOVE-300 In.tec light
8031414876372
lumen 47150 lm 150° x 80°
watt 300W 497 mm
pf 0.90

392 mm 58 mm

colour beam colour
temp. angle
LED-GIOVE-400
8031414876389
lumen 66031 lm 150° x 80°
Fotometria del prodotto
Photometric curve 180 180 180 180 watt 400W
347 396 399 394 524 mm
135 278 -135 135 317 -135 135 319 -135 135 315 -135 pf 0.90
208 238 239 236
139 158 159 157
69 79 80 79
90 -90 90 -90 90 -90 90 -90
69 79 80 79
139 158 159 157
208 238 239 236
45 278 -45 45 317 -45 45 319 -45 45 315 -45
347 396 399 394 545 mm 64,8 mm
0 0 0 0
LED-GIOVE-100 LED-GIOVE-200 LED-GIOVE-300 LED-GIOVE-400
