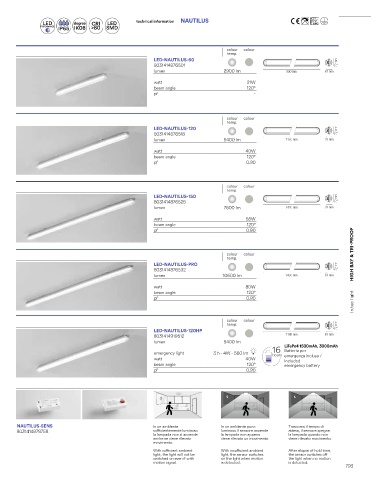

NAUTILUS PERFORMANCE IP65 IK08 CRI SMD technical information NAUTILUS
LED
LED
degree
>80
Plafoniere stagno in policarbonato. industrial commercial urban
Waterproof ceiling lamps in polycarbonate. use areas use areas use
colour colour
temp.
LED-NAUTILUS-60
8031414876501 72 mm
lumen 2900 lm 590 mm 61 mm
Materiale
policarbonato watt 21W
beam angle 120°
Colore pf -
silver

colour colour
Temperatura colore temp.
4000K LED-NAUTILUS-120 72 mm
8031414876518
lumen 5400 lm 1180 mm 61 mm
Driver watt 40W
integrato beam angle 120°
pf 0.90
Durata e on/off
50.000 h
>25.000 on/off
colour colour
temp.
Material LED-NAUTILUS-150
polycarbonate 8031414876525 72 mm
lumen 7500 lm 1480 mm 61 mm
Colour
silver watt 55W
beam angle 120°
pf 0.90
Colour temperature
4000K
colour colour HIGH BAY & TRI-PROOF
temp.
LED-NAUTILUS-PRO
Driver 8031414876532 72 mm
built-in lumen 10600 lm 1480 mm 61 mm
Life time and on/off watt 80W
In.tec light
50.000 h beam angle 120°
>25.000 on/off pf 0.90

colour colour
temp. 72 mm
LED-NAUTILUS-120HP
8031414919512 1180 mm 61 mm
lumen 5400 lm
LiFePo4 1500mAh, 3000mAh
emergency light 3 h - 4W - 560 lm 16 Batteria per
hours emergenza inclusa /
watt 40W Included
beam angle 120° emergency battery
pf 0.90

Fotometria del prodotto / Photometric curve
180 180 180 180
291 294 292 292
135 233 -135 135 235 -135 135 234 -135 135 234 -135
175 176 175 175
117 118 117 117 NAUTILUS-SENS In un ambiente In un ambiente poco Trascorso il tempo di
58 59 58 58 8031414878758 sufficientemente luminoso luminoso il sensore accende attesa, il sensore spegne
90 -90 90 -90 90 -90 90 -90 la lampada non si accende la lampada non appena la lampada quando non
58 59 58 58 anche se viene rilevato viene rilevato un movimento. viene rilevato movimento.
117 118 117 117 movimento.
175 176 175 175
45 233 -45 45 235 -45 45 234 -45 45 234 -45 With sufficient ambient With insufficient ambient After elapse of hold time,
291 294 292 292 light, the light will not be light, the sensor switches the sensor switches off
0 0 0 0 switched on even if with on the light when motion the light when no motion
LED-NAUTILUS-60 LED-NAUTILUS-120 LED-NAUTILUS-150 LED-NAUTILUS-PRO motion signal. is detected. is detected.
