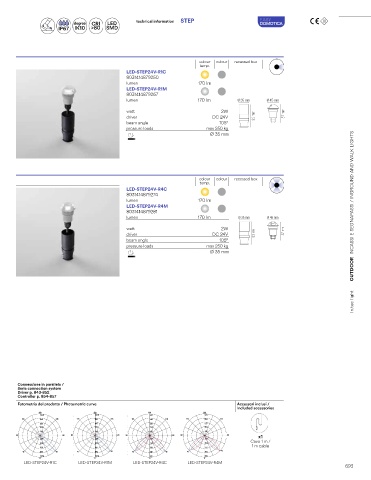

Page 659 - INTEC

STEP IP67 degree CRI SMD technical information STEP EASY
LED
DOMOTICA
>80
IK10
Segnapassi incasso in alluminio. outdoor accommodation urban
Aluminum recessed steplight. use areas use areas use

colour colour recessed box
temp.
LED-STEP24V-R1C
Materiale 8031414879250
alluminio lumen 170 lm
LED-STEP24V-R1M
Colore 8031414879267
silver lumen 170 lm Ø 45 mm Ø 35 mm Ø 45 mm Ø 35 mm
watt 2W 57 mm 57 mm
driver DC 24V 90 mm 90 mm
beam angle 105°
Temperatura colore pressure loads max 250 kg
3000K / 4000K Ø 35 mm

Driver
DC 24V
tensione costante
non incluso
colour colour recessed box
Material temp.
aluminum LED-STEP24V-R4C
8031414879274
Colour lumen 170 lm
silver LED-STEP24V-R4M OUTDOOR INCASSI E SEGNAPASSI / INGROUND AND WALK LIGHTS
8031414879281
lumen 170 lm Ø 45 mm Ø 35 mm Ø 45 mm Ø 35 mm

Colour temperature watt 2W 57 mm 57 mm
3000K / 4000K driver DC 24V 90 mm 90 mm
beam angle 105°
pressure loads max 250 kg
Ø 35 mm
Driver
DC 24V
costant voltage
not included

In.tec light

Connessione in parallelo /
Serie connection system
Driver p. 843-852
Controller p. 854-857
Fotometria del prodotto / Photometric curve Accessori inclusi /
Included accessories
180 180 180 180
1050 1079 635 628
135 840 -135 135 863 -135 135 508 -135 135 502 -135
630 647 381 377
420 431 254 251
210 216 127 126
90 -90 90 -90 90 -90 90 -90 x1
210 216 127 126
420 431 254 251 Cavo 1 m /
630 647 381 377 1 m cable
45 840 -45 45 863 -45 45 508 -45 45 502 -45
1050 1079 635 628
0 0 0 0
LED-STEP24V-R1C LED-STEP24V-R1M LED-STEP24V-R4C LED-STEP24V-R4M
692 693
