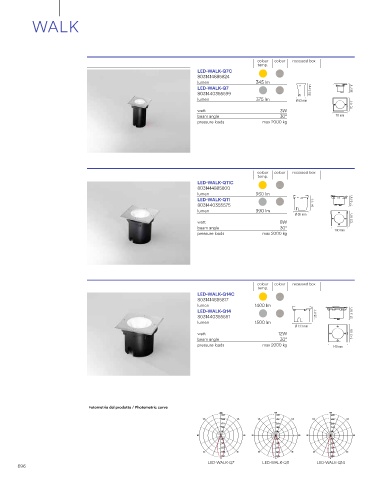

WALK IP67 degree CRI COB technical information WALK
LED
>80
IK10

colour colour recessed box colour colour recessed box
temp. temp.
LED-WALK-Q7C LED-WALK-R7C
8031414885824 8031414885855
lumen 345 lm lumen 345 lm
LED-WALK-Q7 88,5 mm 66 mm LED-WALK-R7 88,5 mm 66 mm
8031440355599 8031440355582
lumen 375 lm Ø 63 mm lumen 375 lm Ø 63 mm
70 mm
watt 3W watt 3W
beam angle 30° 70 mm beam angle 30° Ø 70 mm
pressure loads max 2000 kg pressure loads max 2000 kg

colour colour recessed box colour colour recessed box
temp. temp.
LED-WALK-Q11C LED-WALK-R11C
8031414885800 8031414885831
lumen 930 lm lumen 930 lm
LED-WALK-Q11 77,8 mm LED-WALK-R11 77,8 mm
8031440355575 94 mm 8031440355568 94 mm OUTDOOR INCASSI E SEGNAPASSI / INGROUND AND WALK LIGHTS
lumen 990 lm lumen 990 lm
Ø 85 mm Ø 85 mm
watt 8W 100 mm watt 8W
beam angle 30° 100 mm beam angle 30°
pressure loads max 2000 kg pressure loads max 2000 kg

colour colour recessed box colour colour recessed box
temp. temp.
LED-WALK-Q14C LED-WALK-R14C
8031414885817 8031414885848 In.tec light
lumen 1400 lm lumen 1400 lm
LED-WALK-Q14 91,5 mm LED-WALK-R14 91,5 mm
8031440355551 106 mm 8031440355544 106 mm
lumen 1500 lm lumen 1500 lm
Ø 133 mm Ø 133 mm
watt 12W 140 mm watt 12W
beam angle 30° beam angle 30°
pressure loads max 2000 kg 140 mm pressure loads max 2000 kg Ø 140 mm

Fotometria del prodotto / Photometric curve Fotometria del prodotto / Photometric curve
180 180 180 180 180 180
1961 2519 3800 1961 2519 3800
135 1569 -135 135 2015 -135 135 3040 -135 135 1569 -135 135 2015 -135 135 3040 -135
1177 1511 2280 1177 1511 2280
785 1008 1520 785 1008 1520
392 504 760 392 504 760
90 -90 90 -90 90 -90 90 -90 90 -90 90 -90
392 504 760 392 504 760
785 1008 1520 785 1008 1520
1177 1511 2280 1177 1511 2280
45 1569 -45 45 2015 -45 45 3040 -45 45 1569 -45 45 2015 -45 45 3040 -45
1961 2519 3800 1961 2519 3800
0 0 0 0 0 0
LED-WALK-Q7 LED-WALK-Q11 LED-WALK-Q14 LED-WALK-R7 LED-WALK-R11 LED-WALK-R14
